Bird Perch Deterrent

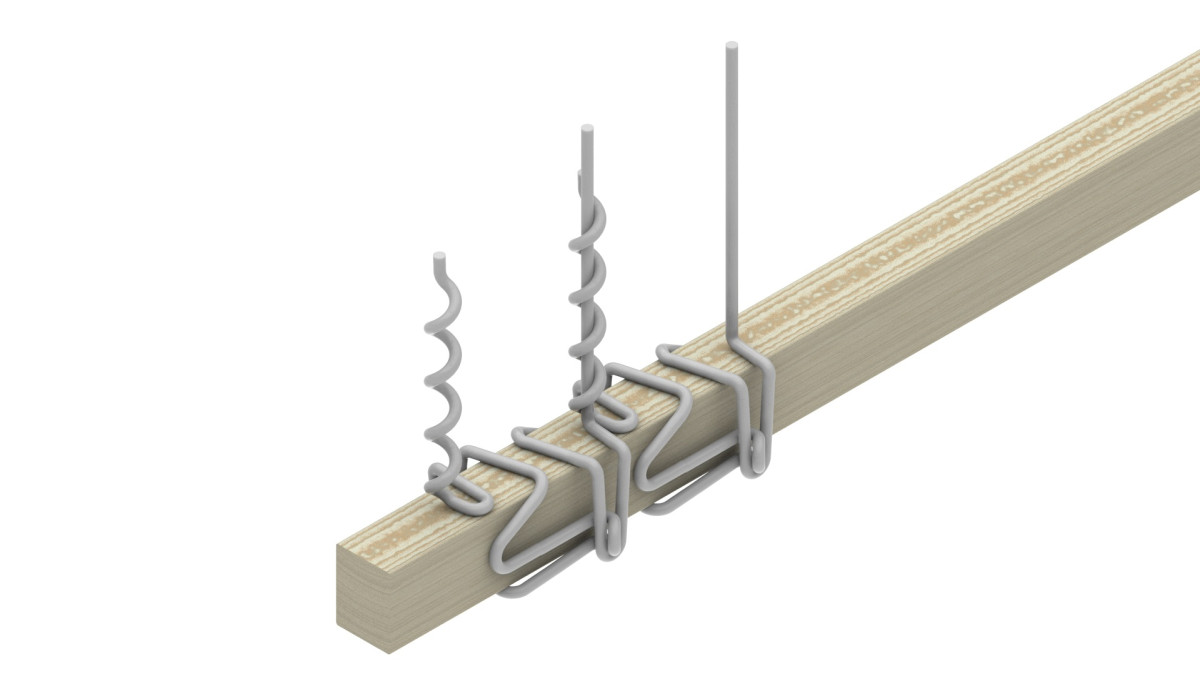

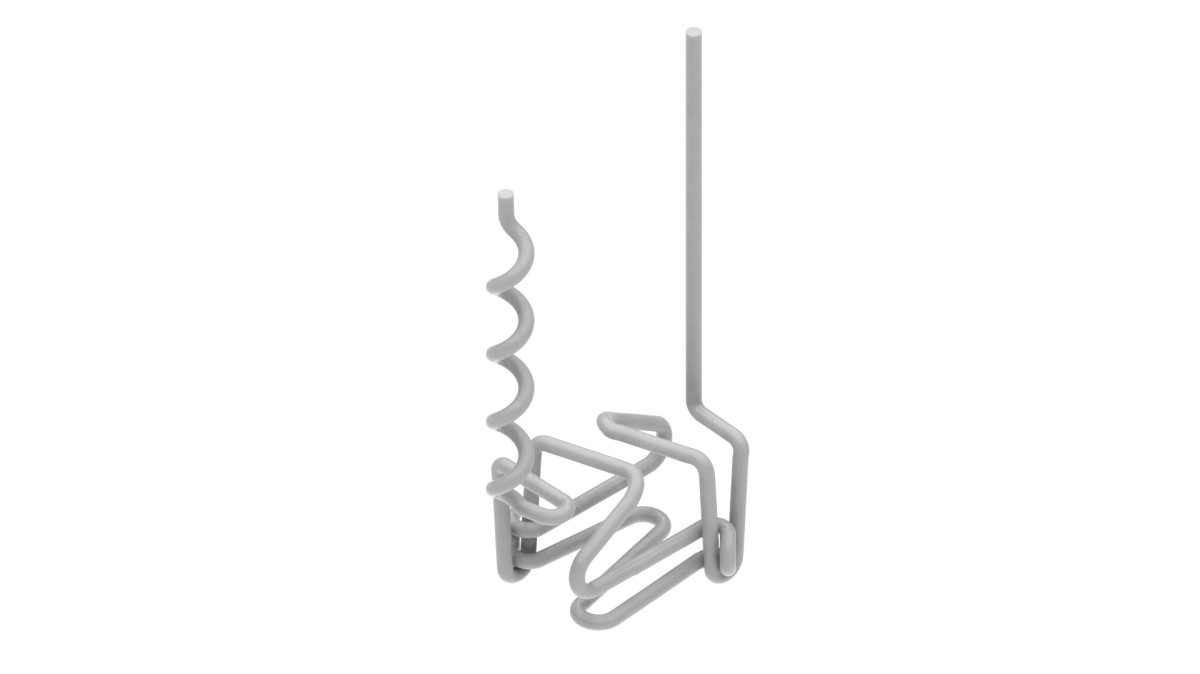

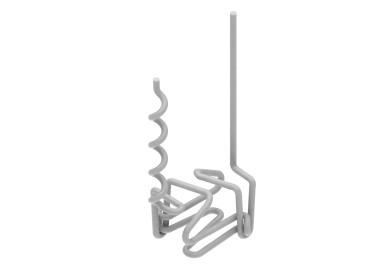

The Bird Perch Deterrent (BPD) is designed to eliminate roosting areas on structures that are electrocution hazards or over equipment to keep it free from bird contamination. Bird Perch Deterrents provide an economical means of reducing avian fatalities, line outages, and equipment flashovers, and are easily installed over the structural support
-
Eliminate perching to prevent fouling of equipment or incidental contact electrocution
-
Economical and easily applied
-
Long service life without deterioration
-
Interlocking design, no attachment hardware
-
8” (203 mm) spacing between uprights
-
Lightweight (no metal parts), minimal wind resistance
-
Outdoor-grade PVC performs in extreme temperatures
-
Meets UL 94 V-0 flammability requirements
Product Information
Bird Perch Deterrent - Catalog Pages
Bird Perch Deterrent - Catalog Pages for Tower & Antenna
Installation Instructions
SP3219 (BIRD PERCH DETERRENT - I-Beam)
SP3196 (BIRD PERCH DETERRENT - Inverted Structural Steel)
SP3143 (BIRD PERCH DETERRENT - Structural Steel)
SP3189 (BIRD PERCH DETERRENT - Crossarms)
SP3471 (BIRD PERCH DETERRENT for Distribution Top Pole)
SP3800 (BIRD PERCH DETERRENT - Conical Structure Arms and Crossmembers)
|
Bird Perch Deterrent Ordering Information
• A minimum of two BPDs are required to ensure proper application. • Standard color is gray; to order yellow, add suffix code "-Y" to the catalog number.
|
||||
| Catalog Number | Application | Crossarm Dimension |
Crossarm Dimension |
Units per Carton |
| Width | Height | |||
| in (mm) | in (mm) | |||
| BPD-XARM | Crossarm | 3.25 (83) | 4.25 (108) | 16 |
| BPD-A22 | Angle | 2 (50) | 2 (50) | 24 |
| BPD-IA22 | Inverted Angle | 2 (50) | 2 (50) | 24 |
| BPD-A25 | Angle | 2.5 (63) | 2.5 (63) | 24 |
| BPD-IA25 | Inverted Angle | 2.5 (63) | 2.5 (63) | 24 |
| BPD-A225 | Angle | 2 (50) | 2.5 (63) | 24 |
| BPD-IA225 | Inverted Angle | 2 (50) | 2.5 (63) | 24 |
| BPD-W6I | I-Beam | 6 (152) | 6 (152) | 16 |
| BPD-W10I | I-Beam | 10 (254) | 10 (254) | 16 |
| BPD-HD64 | Heavy-Duty Crossarm | 6 (152) | 4 (102) | 16 |
| BPD-HD55 | Heavy-Duty Crossarm | 5 (127) | 5 (127) | 12 |
| BPD-DAVIT | Davit Arm | Universal | Universal | 30 |
| BPD-HD3585 | Heavy-Duty Crossarm | 3.5 (89) | 8.5 (216) | 16 |
| BPD-HD5777 | Heavy-Duty Crossarm | 5.75 (146) | 7.75 (146) | 16 |
WARNING: Bird Perch Deterrents should not be used if nesting of large birds is already present
