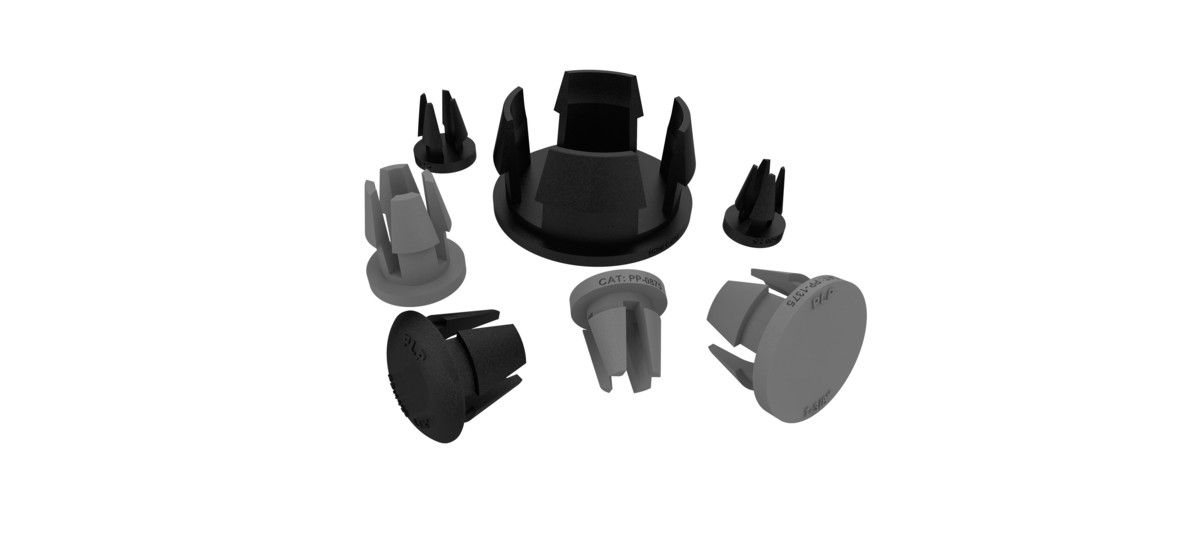

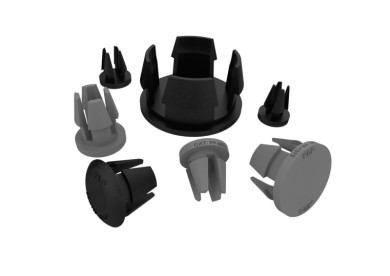

Pole Plug
The Pole Plug is designed to close existing holes in steel and composite utility poles or other equipment. Closing unused holes reduces or eliminates whistling due to the wind. The plug also provides an economical means of drastically reducing the incidence of insect infestations that can result in lineworker injuries and productivity losses.
-
Fully UV-stabilized
-
Resistant to environmental stress cracking
-
Lightweight, one-piece design
-
Can be installed with standard hot stick tools if required
-
Positive snap-in lock
-
Covers a wide range of hole diameters
-
Long service life without material deterioration
-
UL 94 V-0 compliant versions available
Product Information
Installation Instructions
POLE PLUG Ordering Information
• Add suffix "B" or "G" to indicate color: "B" - Black, "G" - Gray, Example: PP-0625B
• To order UL 94 V-0, add "FR" following the color code designation, Example: PP-0625BFR
• To order Pole Plug for Heavy Wall Poles, add "H" following the color code designation, Example: PP-0625BH
NOTE: All Heavy Wall Pole Plugs are made from urethane and are UL 94 V-0 compliant. PP-1500xxx is not available with Heavy Wall
| Catalog Number | Hole Size |
Maximum Wall Thickness |
| in | in | |
| PP-0625xxx | 9/16 and 5/8 |
1/4 Standard or 11/16 Heavy Wall |
| PP-0750xxx | 11/16 and 3/4 | |
| PP-0813xxx | 13/16 | |
| PP-0875xxx | 7/8 and 15/16 | |
| PP-1000xxx | 1 and 1-1/16 | |
| PP-1125xxx | 1-1/8 | |
| PP-1500xxx | 1-1/2 | 3/8 |
| PP-1250x | 1-1/4 | 1/4 |
| PP-1375x | 1-3/8 | 3/8 |
| PP-3000x | 3 | 3/4 |
